This system is based on pre-fabricated roll-formed profiles, that are precisely prepared (through bending and cutting) in advance to guarantee a very fast assembly on-site, ensuring maximum efficiency and the lowest cost. The assembly part of the system is basically a screwing operation to fix the steel structure and the covering panels (usually in OSB). Furthermore, the Light Steel Framing (LSF) system is known for being environmentally friendly, due to the reduced use of water in the construction.

About Light Steel Framing:

Light steel framing (LSF) is a construction system that relies on steel as the fundamental structural material. The steel structure is covered internally and externally with high-quality materials that ensure the durability and safety of the system. The flexibility of the Light Steel Framing (LSF) system allows a vast number of possibilities in construction, either in terms of shapes and covering materials, that can vary depending on the comfort and design requirements of the customer.

Main Software features:

• Different panels can be created and manipulated to achieve the desired result.
• Possibility to define a complete set of features on a panel, including doors, windows, and technical holes among many others.
• Complete panel or single beam manufacturing.
• Creation of multi-panel jobs to minimize waste.
• The human-machine interface takes advantage of new programming methods for easier manipulation.
• Multi-language user interface.

Main CNC Controller features:

• Industrial pc Intel Core i3 to i7 processors.
• 19 inches touch screen.
• Codesys-based controller for easy integration and maintenance.
• Compatible with a wide variety of motor drives, through Ethercat, CANOpen, Ethernet/IP, or Profinet.
• Modular I/O.

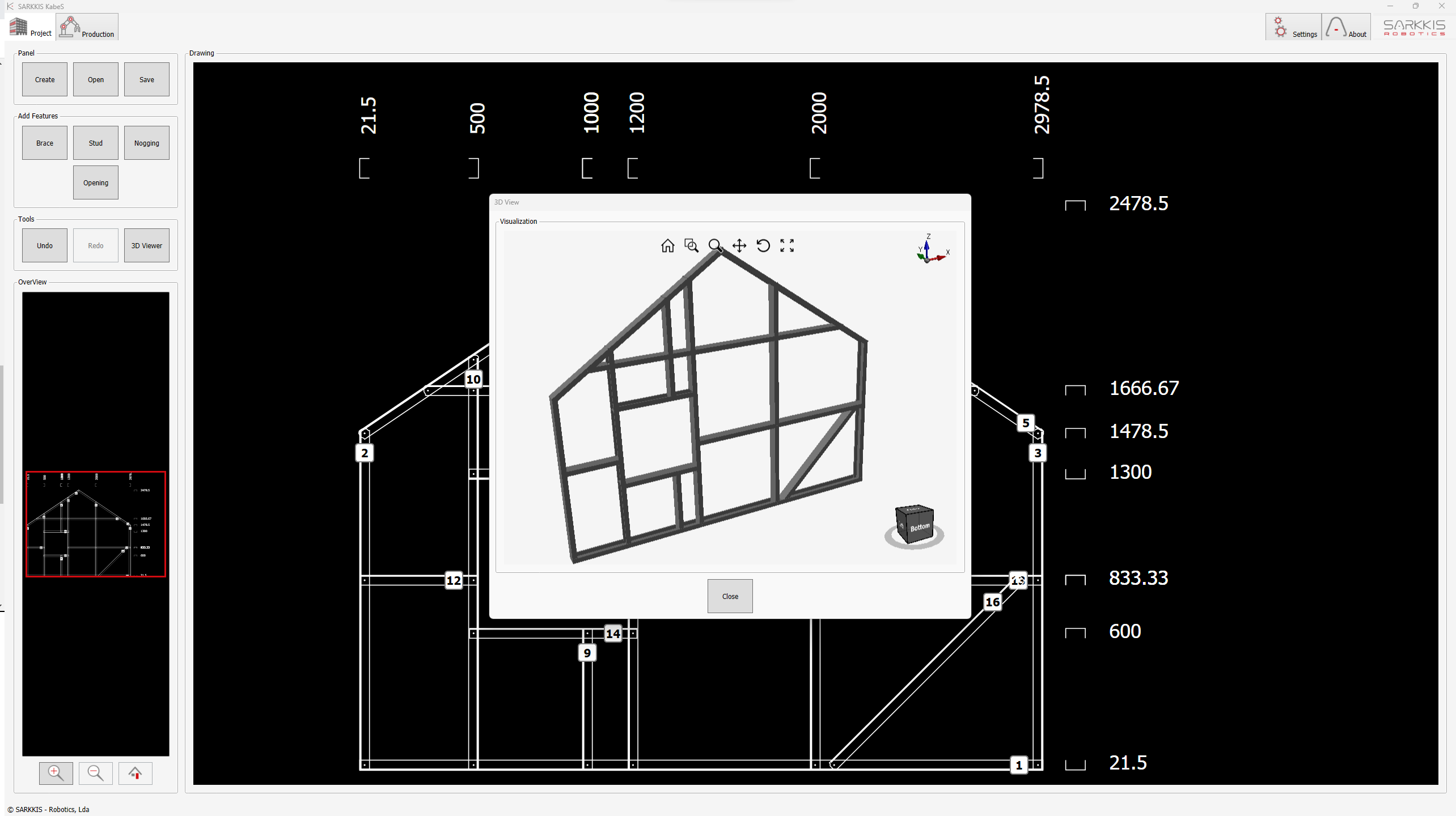

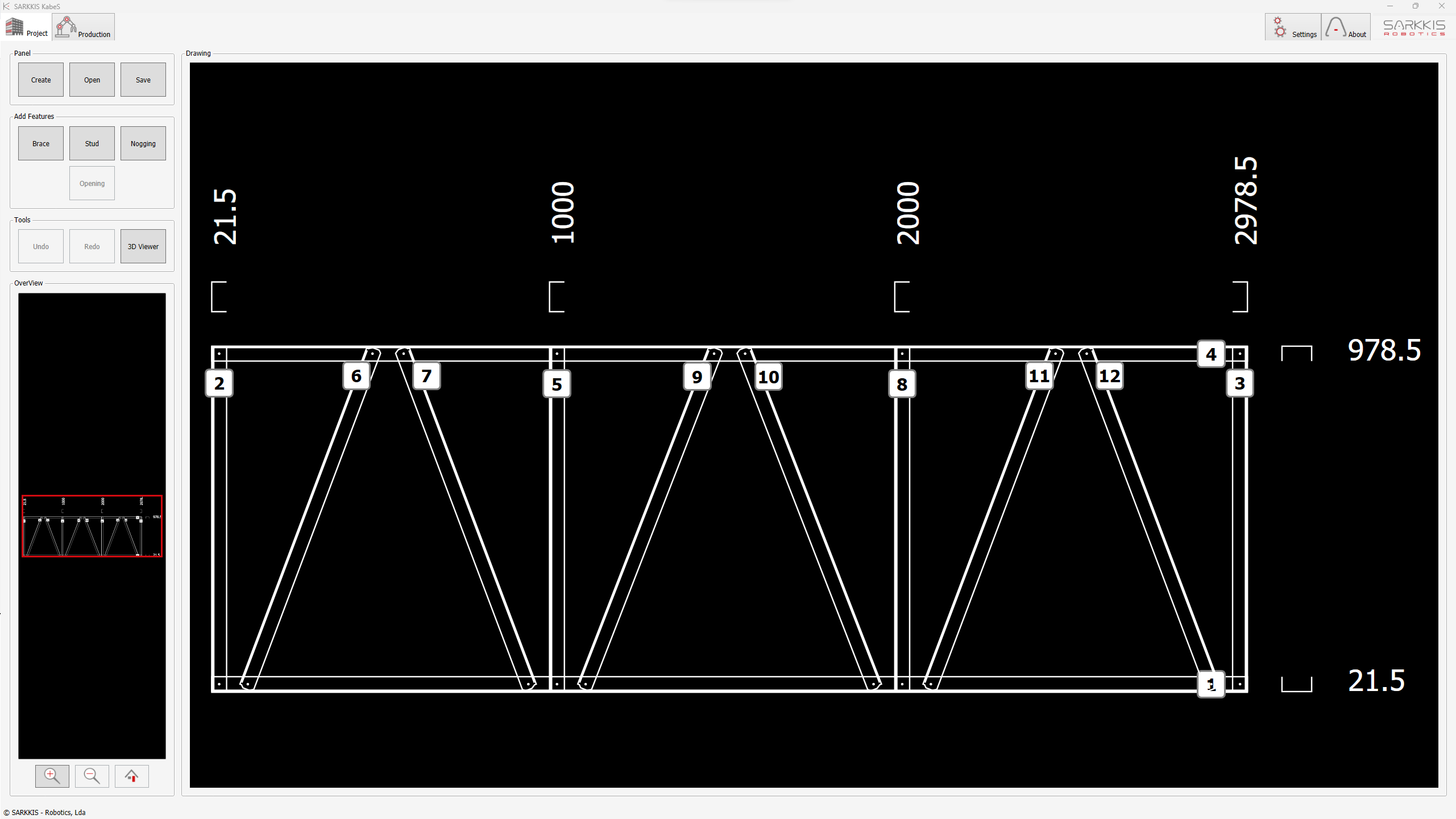

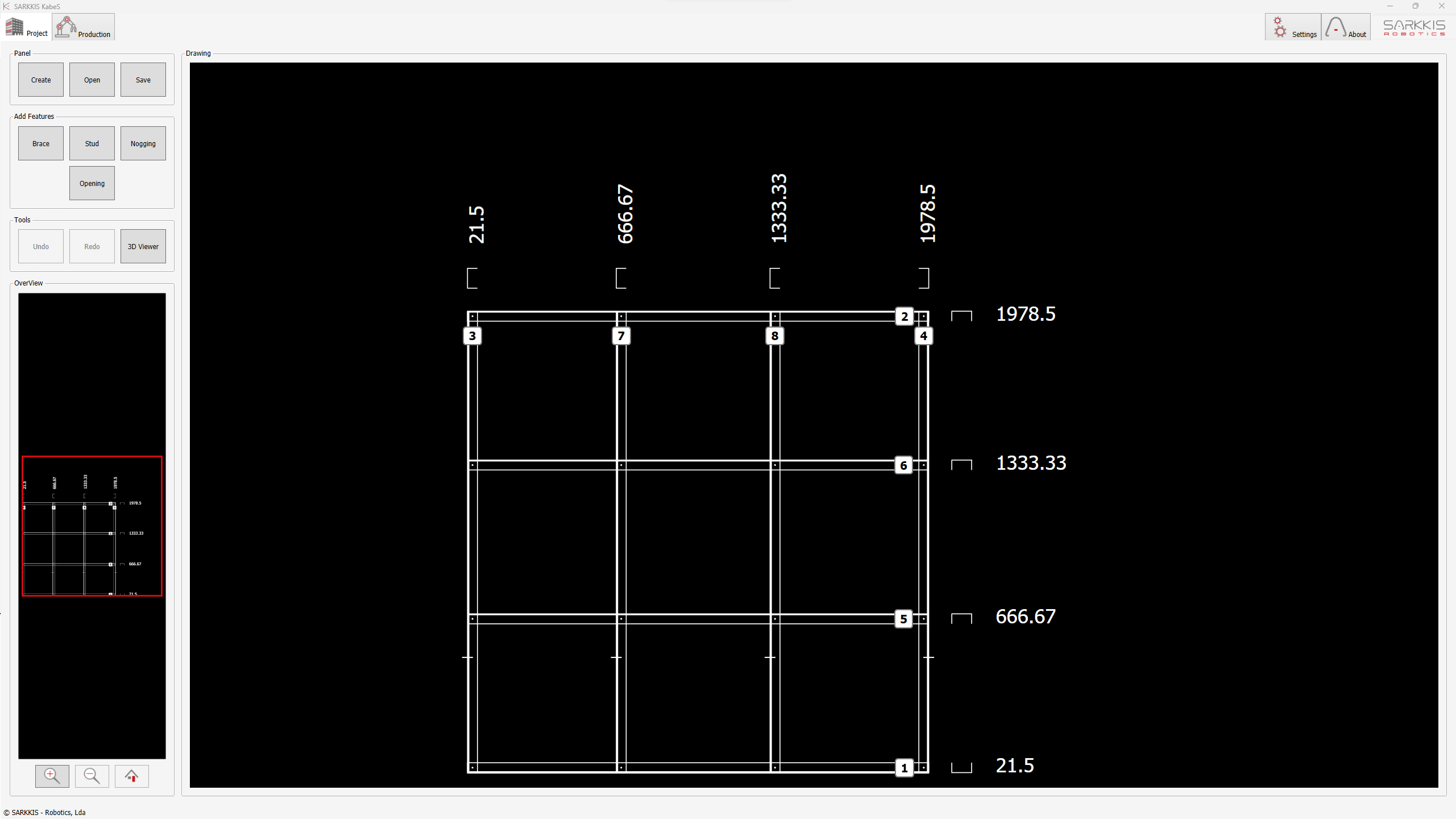

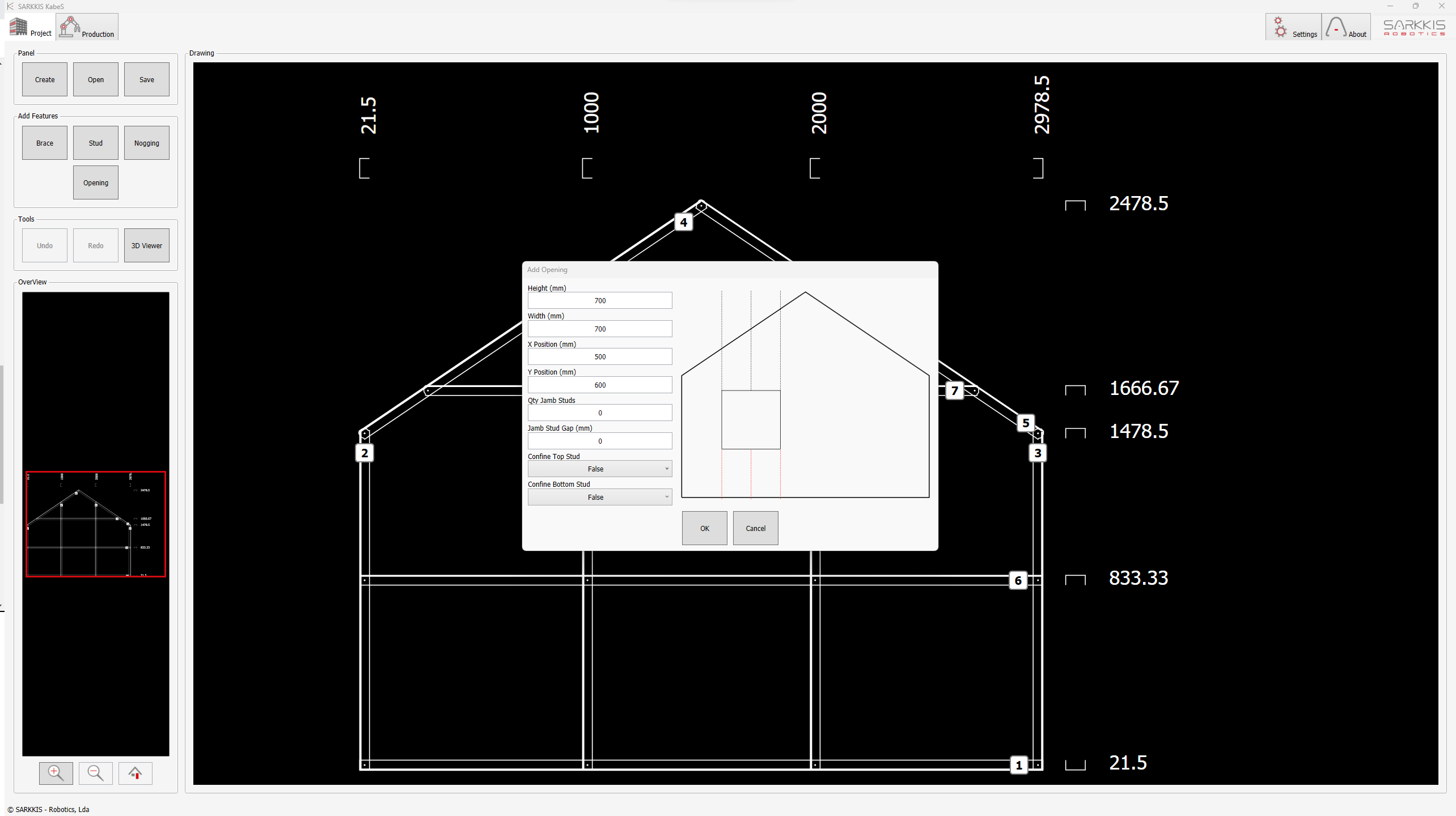

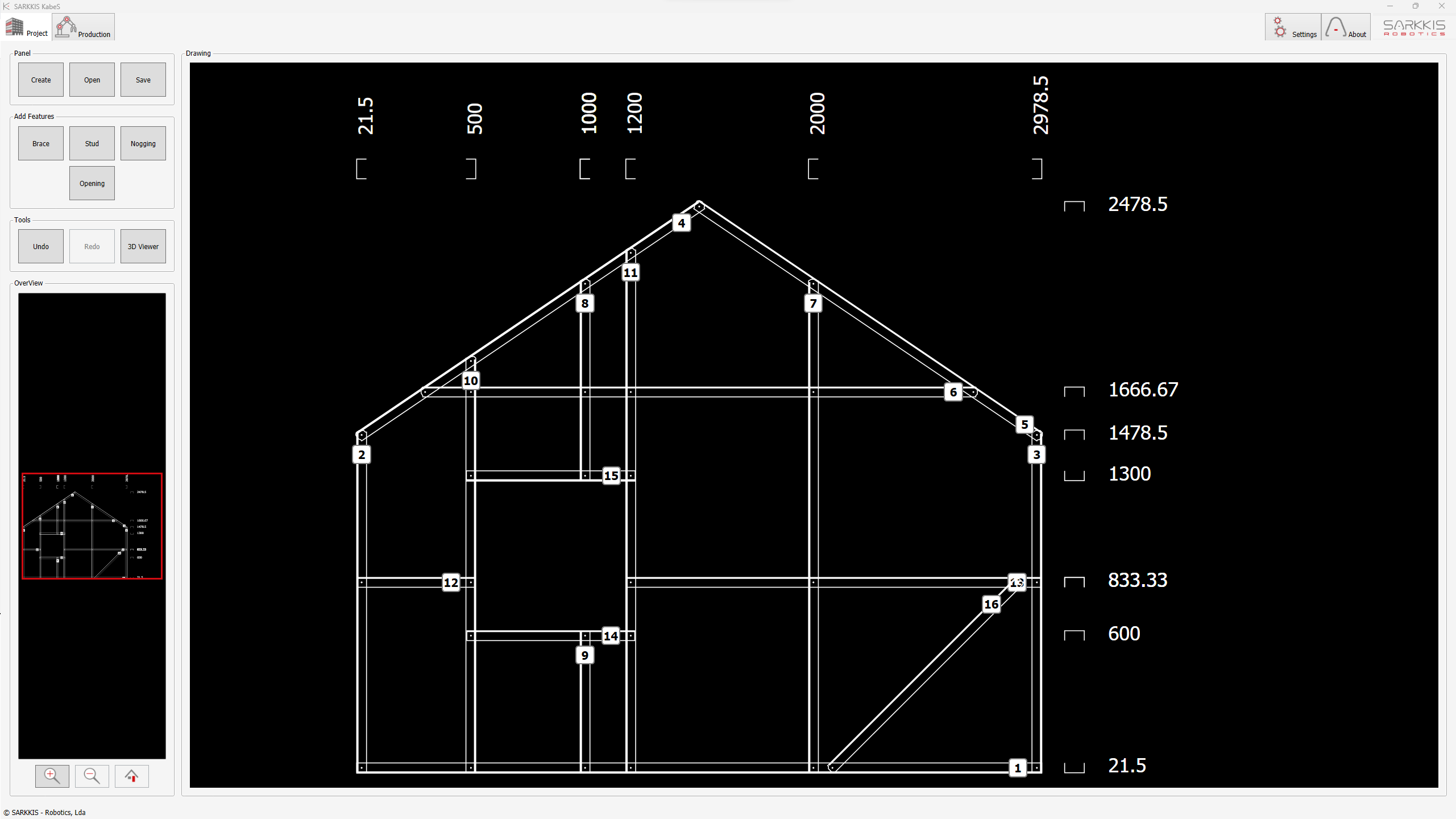

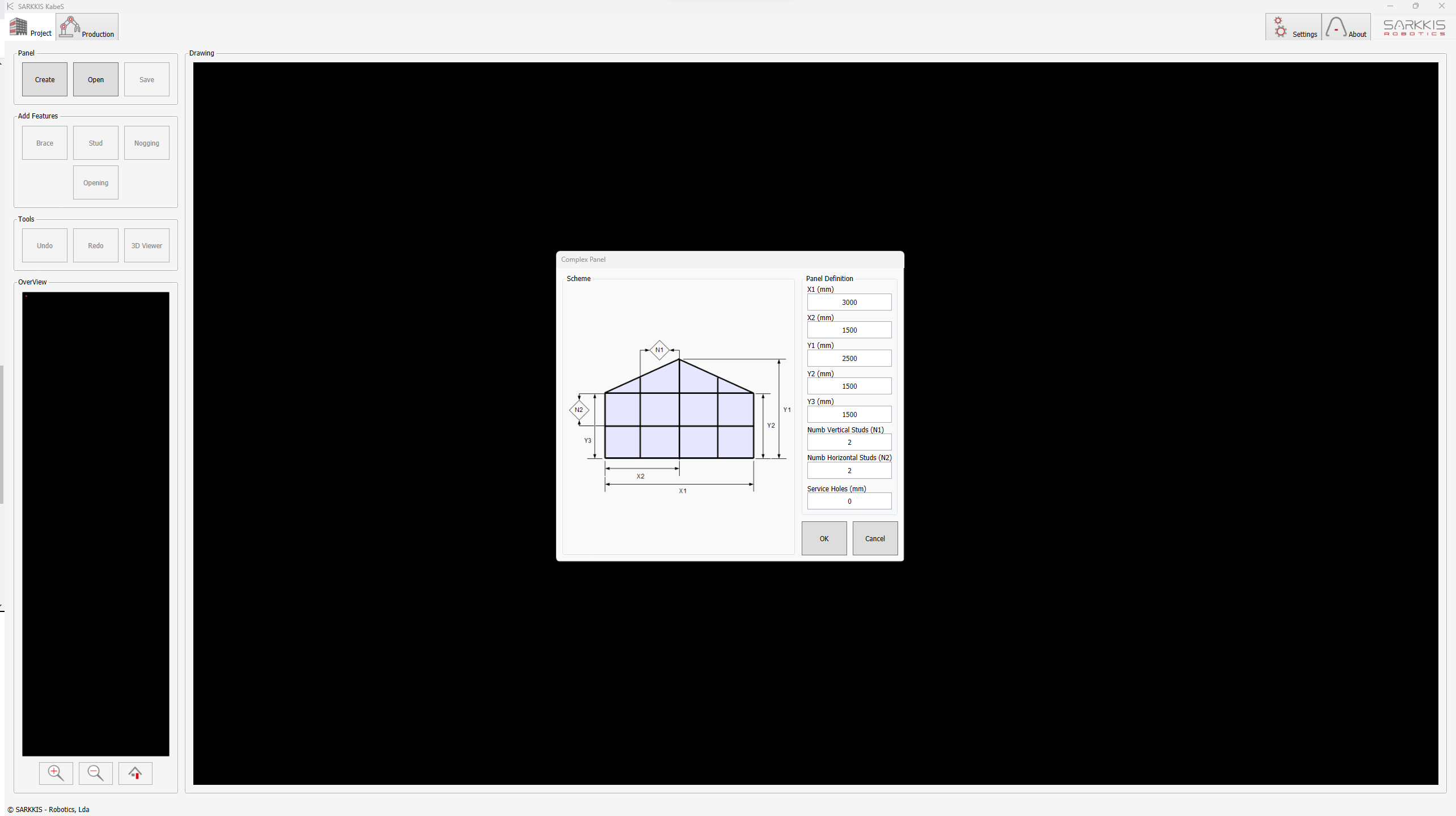

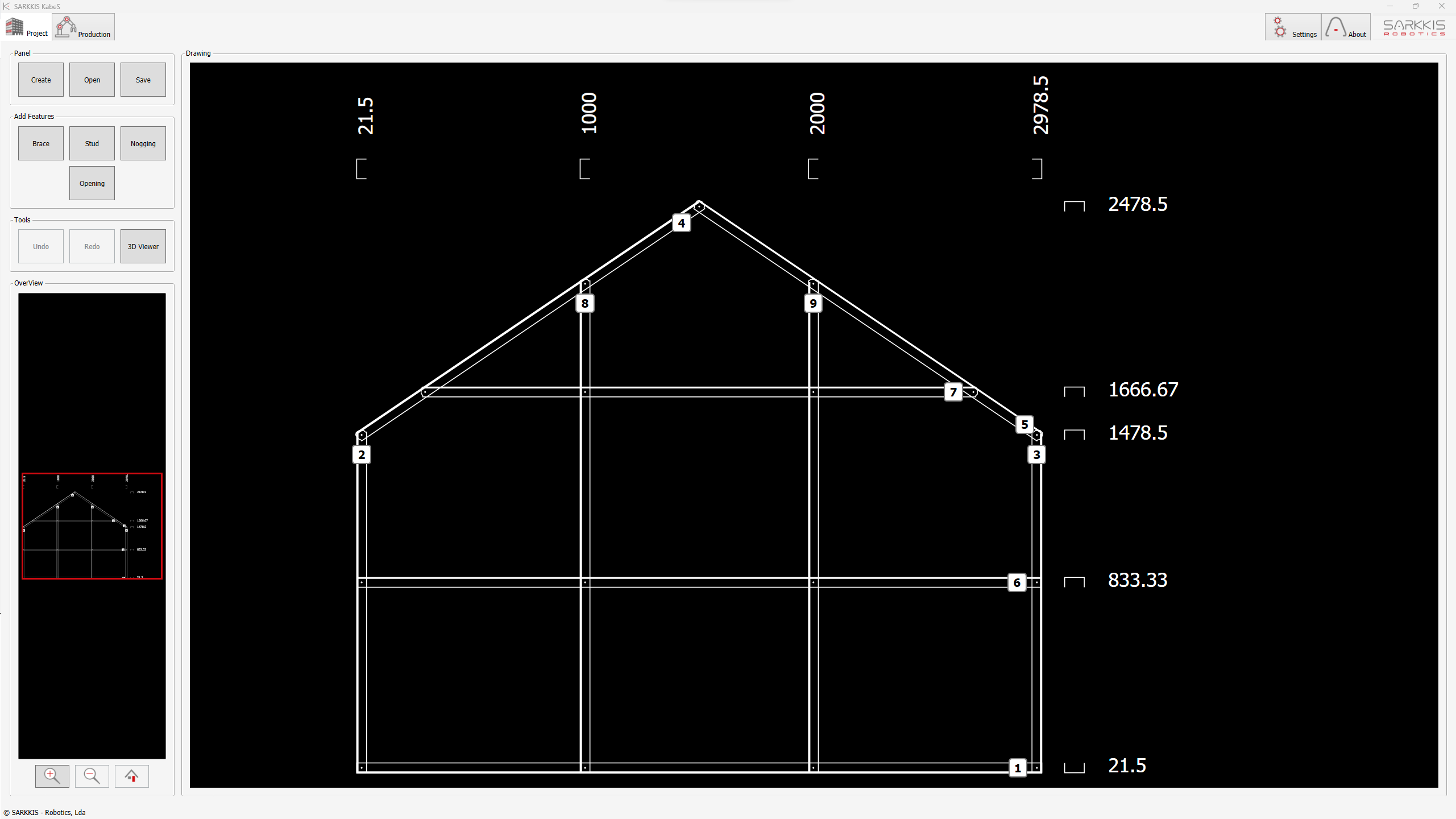

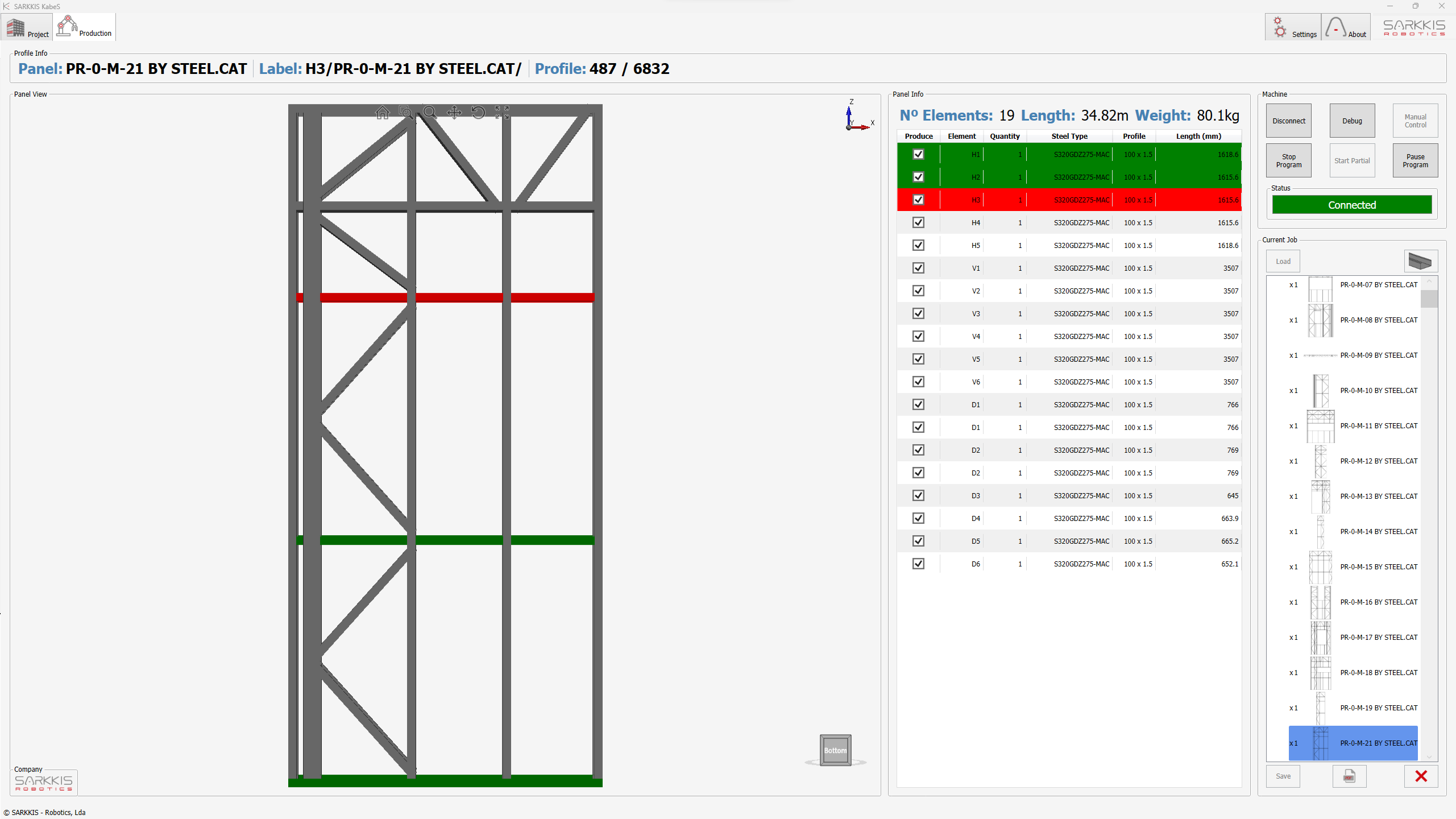

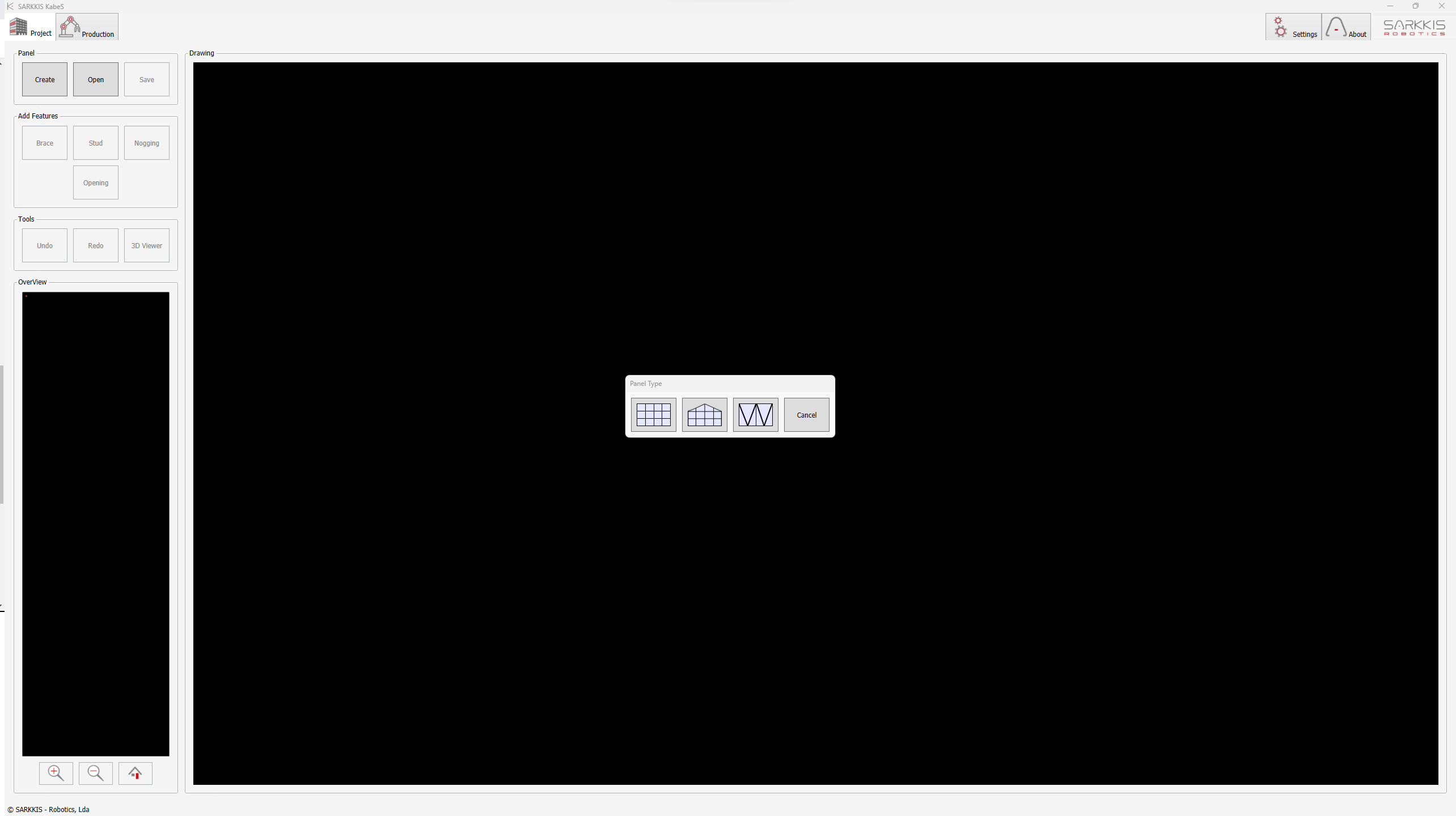

Screenshots:
