Using files generated from Tekla®, SDS/2®, Autodesk™ Revit and similar, MetroID TubeCUT generates efficient robot programs for plasma cutting, supporting communication modules that allow the integration of different plasma sources. Plasma cutting parameters have already been developed for all major plasma cutting brands, including  Hypertherm® or ESAB®, Kjellberg®, but can be customized to the client specific equipment. MetroID TubeCUT is a fully featured robotics software that generates ready-to-run cutting robot programs. It includes advanced path-planning algorithms that produce collision-free cutting robot programs, which means on click from the software to production. No simulation is required to verify the quality of the robot programs. MetroID supports all major robotic brands, including  ABB, FANUC, Motoman, Kuka, COMAU, but can be customized to any client specific equipment.

Main features:

• IFC 4.0 file format.
• 3D Visualization of the tubes, intersections, and cuts.
• Task designer for pipe cut grouping and cutting parameters management.
• Project-oriented workflow.
• Customizable work cell parameters.
• Multilanguage user interface.
• Integrated process parameters database.
• Task-independent process parameters.
• Advanced collision-free path planning.
• Efficient beam cutting robot programs.

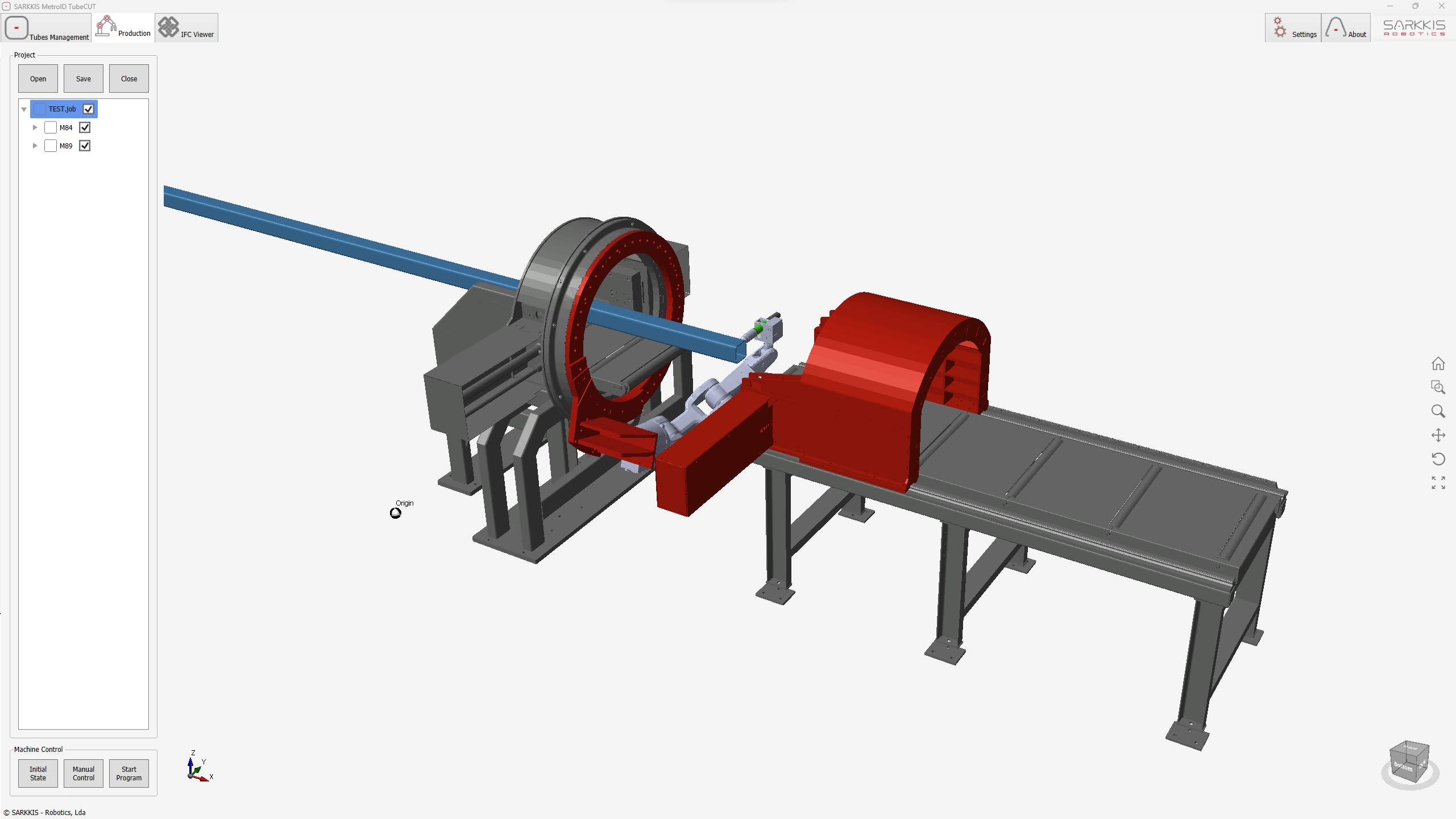

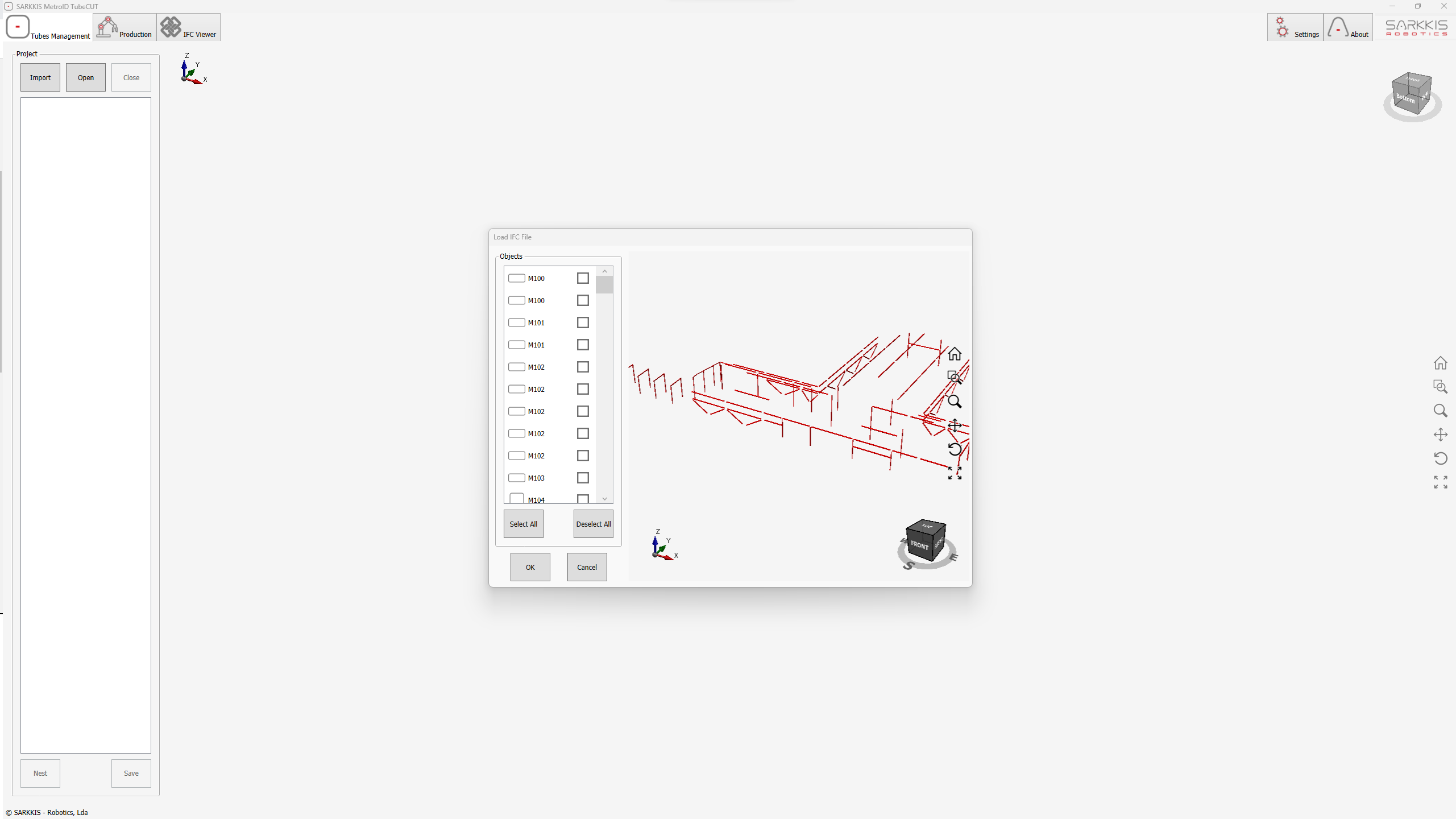

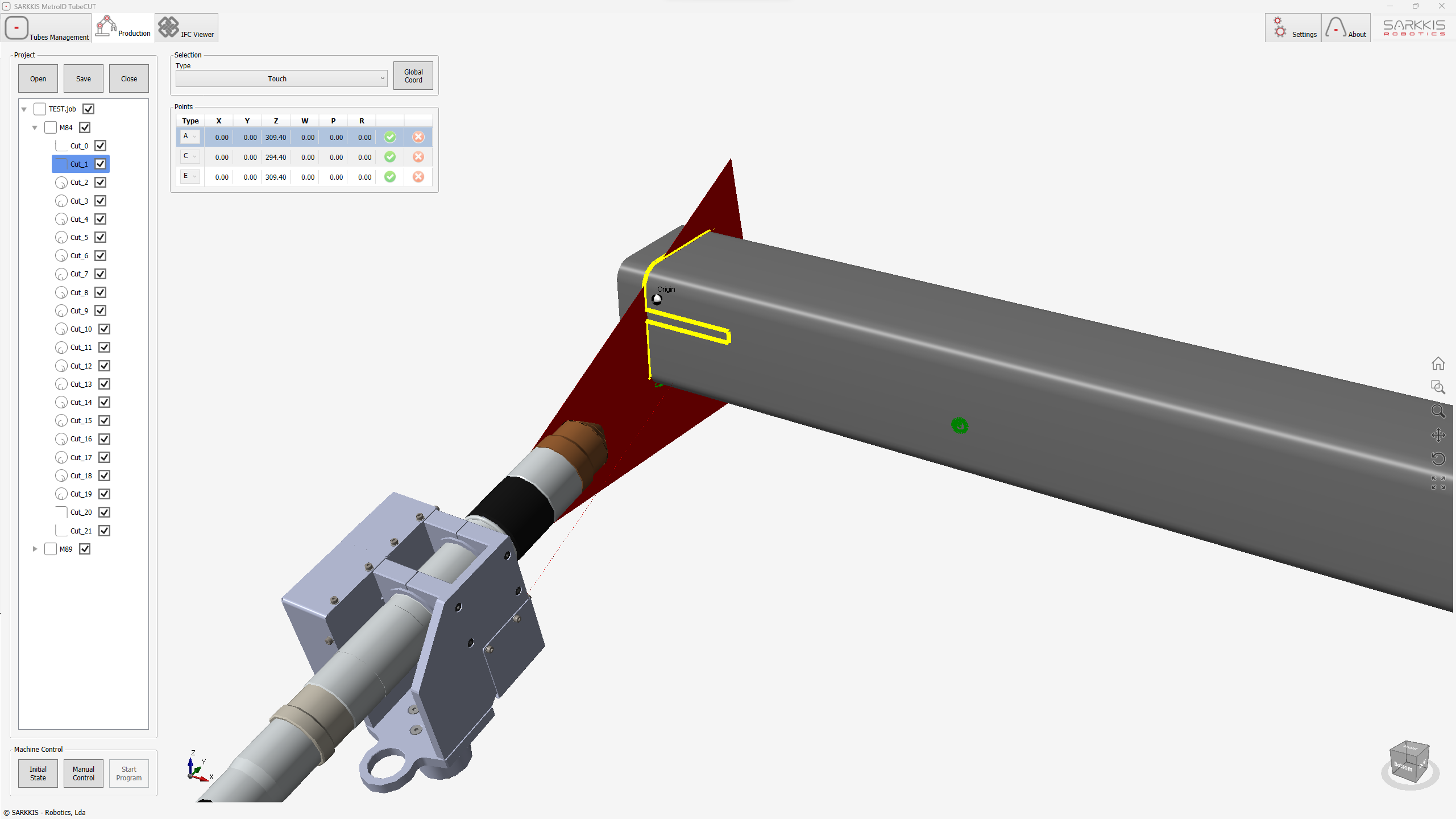

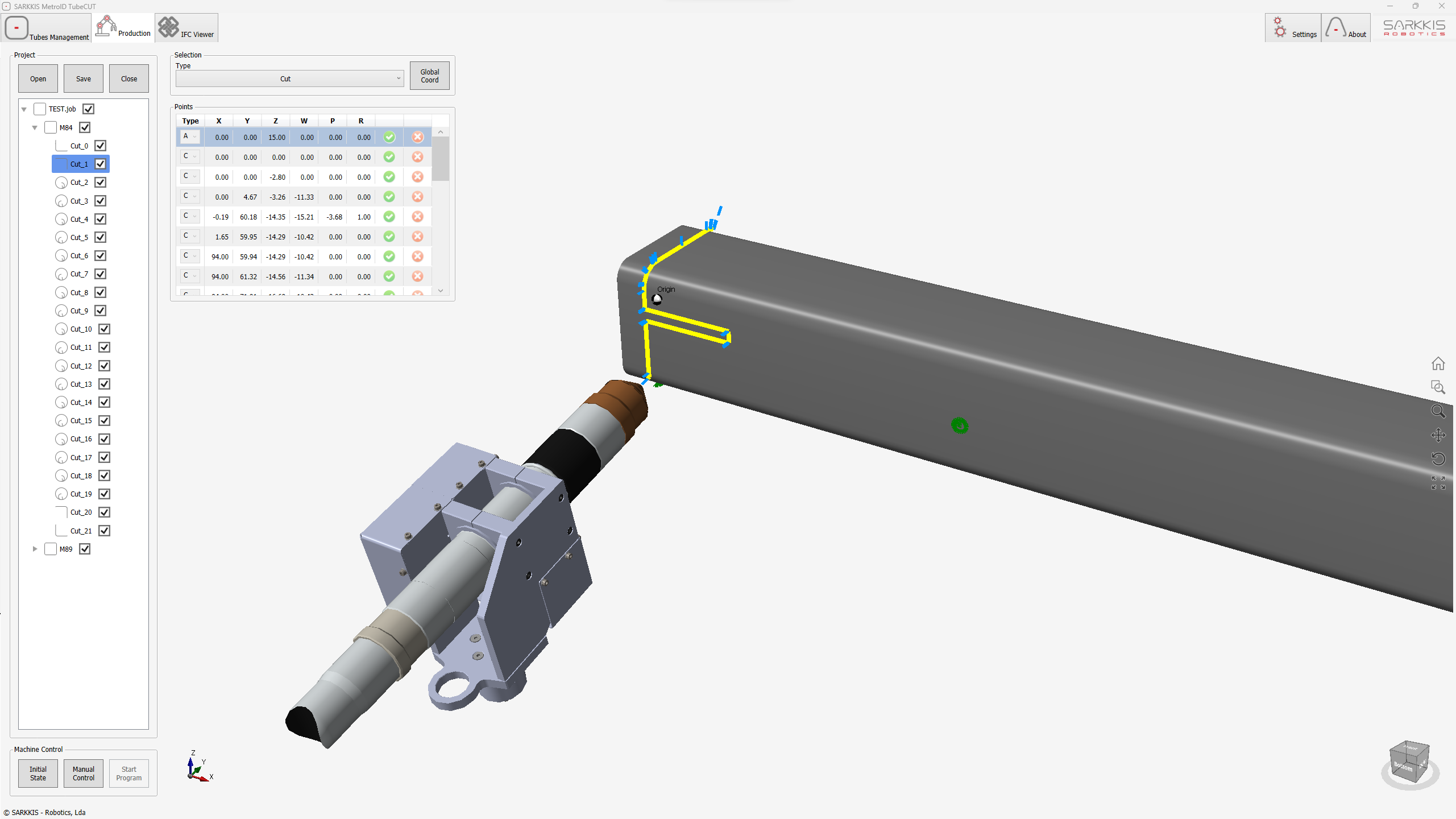

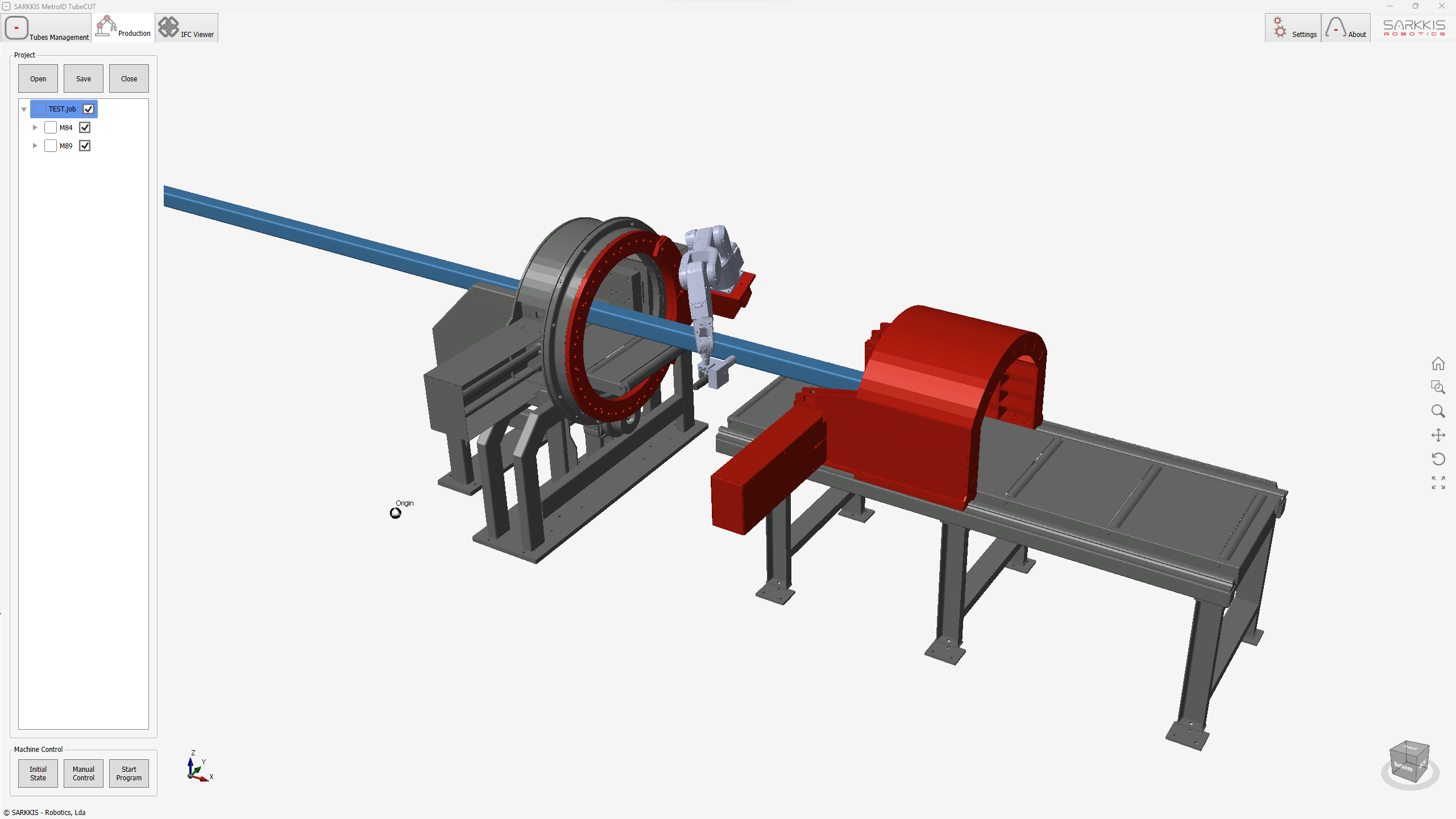

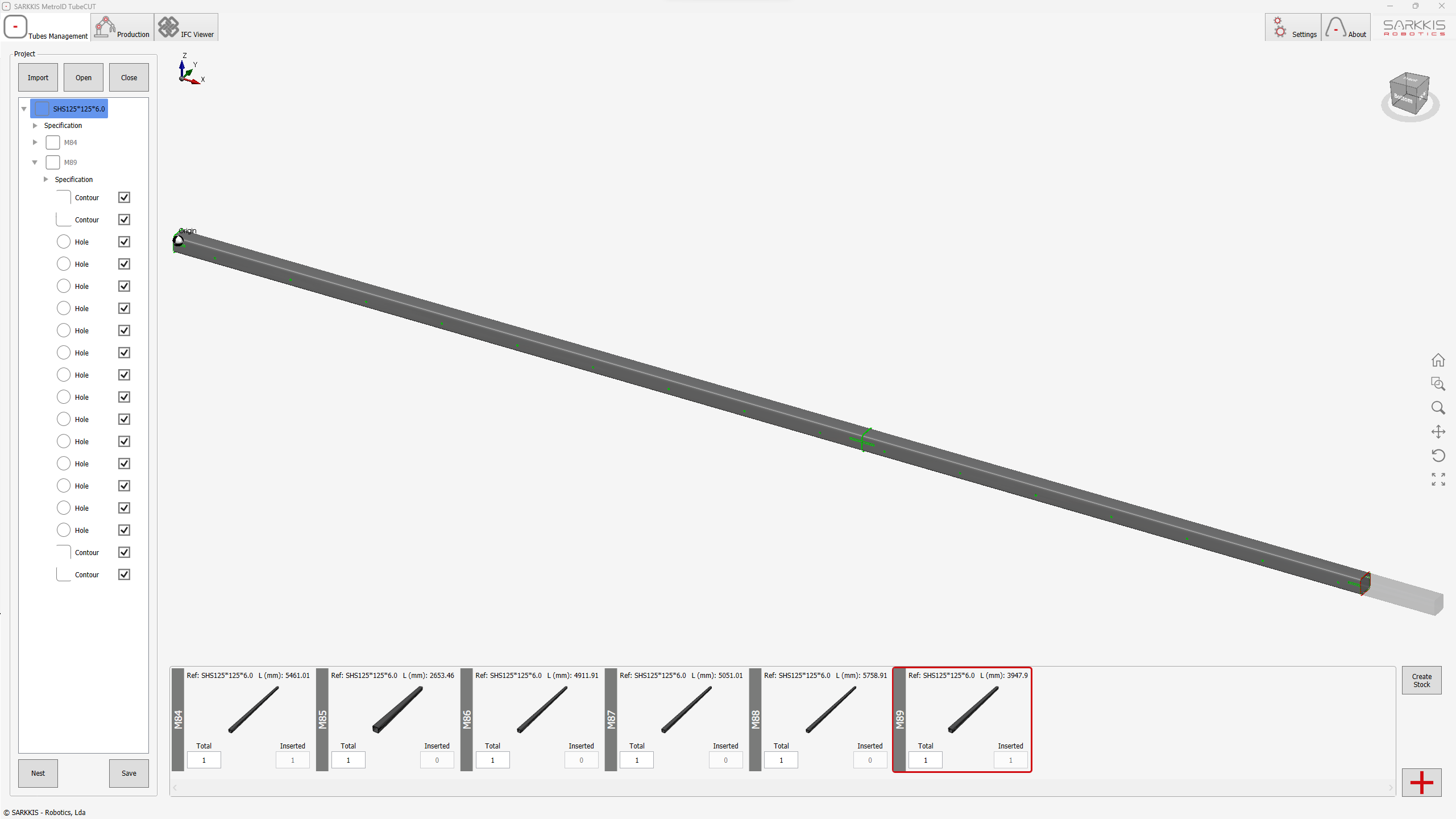

Screenshots:

Example Integration Videos:
